Nilight 115PCS Lever Wire Connectors Nuts Kit 28-12AWG Inline Electrical Terminal 2 3 4 5 Port Assortment Quick Disconnect Push in Wire Connectors for Solid Stranded Wiring Projects

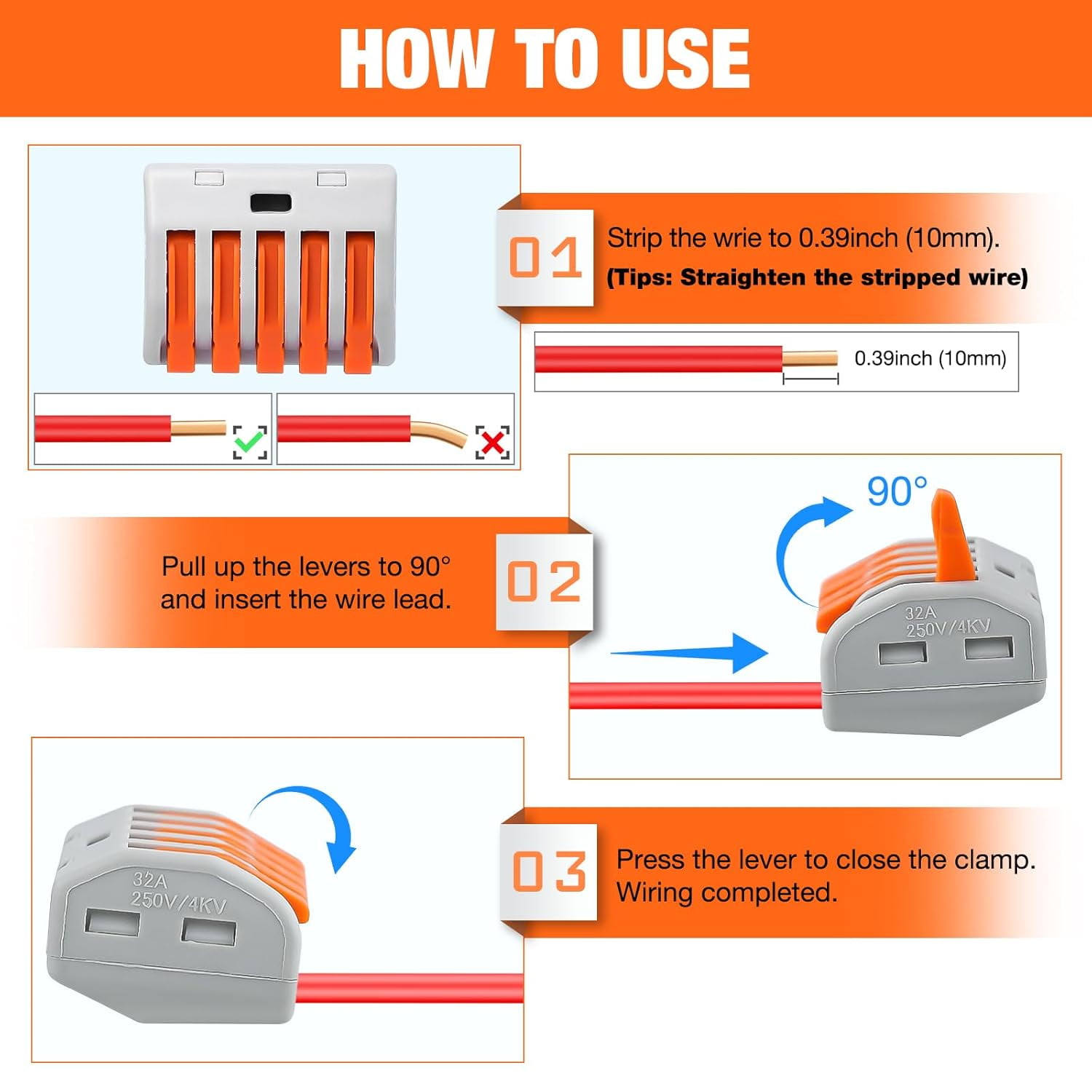

<p><b>Product description</b></p> <ul><li>Nilight Lever Wire Connectors Kit</li><li>Rated Voltage：600V/2.5KV；Rated Current：32A；Wire Range：28-12 AWG</li><li>Contact Shrapnel：Stainless steel；Contact Material：Electrolytic copper nickel tin</li><li>Suitable for single strand hard wire 0.08~4mm²/28-12AWG, and the multiple strand flexible copper wire 0.08~2.5mm²/28-14AWG.</li><li>Lever wire connectors can be used at an ambient temperature of 105°C and have better conductive properties.</li></ul> <p><b>Installation Tips</b></p> <ul><li><b>Step 1:</b>&nbsp;Use the wire stripper to peel the wire case or cut the wire.<br></li><li><b>Step 2:&nbsp;</b>Strip about 9-10mm of the wire sheath.<br></li><li><b>Step 3:&nbsp;</b>Push the lever to 90°. Insert the wires into the individual poles.<br></li><li><b>Step 4:&nbsp;</b>Press the corresponding lever to close the clamp.<br></li></ul> <p><b>Product Advantages and Details</b></p> <ul><li><b>Compatibility:</b>&nbsp;Are widely applied to connect any combination of solid, stranded, and flexible copper wires, ideal for compact and complex applications. Suitable for single strand hard wire 0.08~4mm²/28-12AWG, and the multiple strand flexible copper wire 0.08~2.5mm²/28-14AWG.</li><li><b>High Quality:&nbsp;</b>It is best to use modified nylon PA66 as the flame retardant insulation material, which has long service life, non-corrosion, anti-aging, pressure resistance and high temperature resistance. Lever wire connectors can be used at an ambient temperature of 105°C and have better conductive properties.<br></li><li><b>Safe Design:&nbsp;</b>The lever wire connector inline joint can manage different wires separately to avoid short circuits and fires caused by the aging of the wire staggered strips.<br></li><li><b>Widely Application:&nbsp;</b>Widely used in building wiring, lighting, automatic doors, sockets, switches, cars, loudspeakers, electrical boxes, fan controls and all small appliances.<br></li><li><b>Package includes:&nbsp;</b>115PCS Lever Wire Connectors Nuts Assortment Kit.2 Conductor: 50PCS; 3 Conductor: 38PCS; 4 Conductor: 15PCS; 5 Conductor: 12PCS; Mounting Clips: 75PCS; Screws: 75PCS.<br></li></ul> <p> </p>

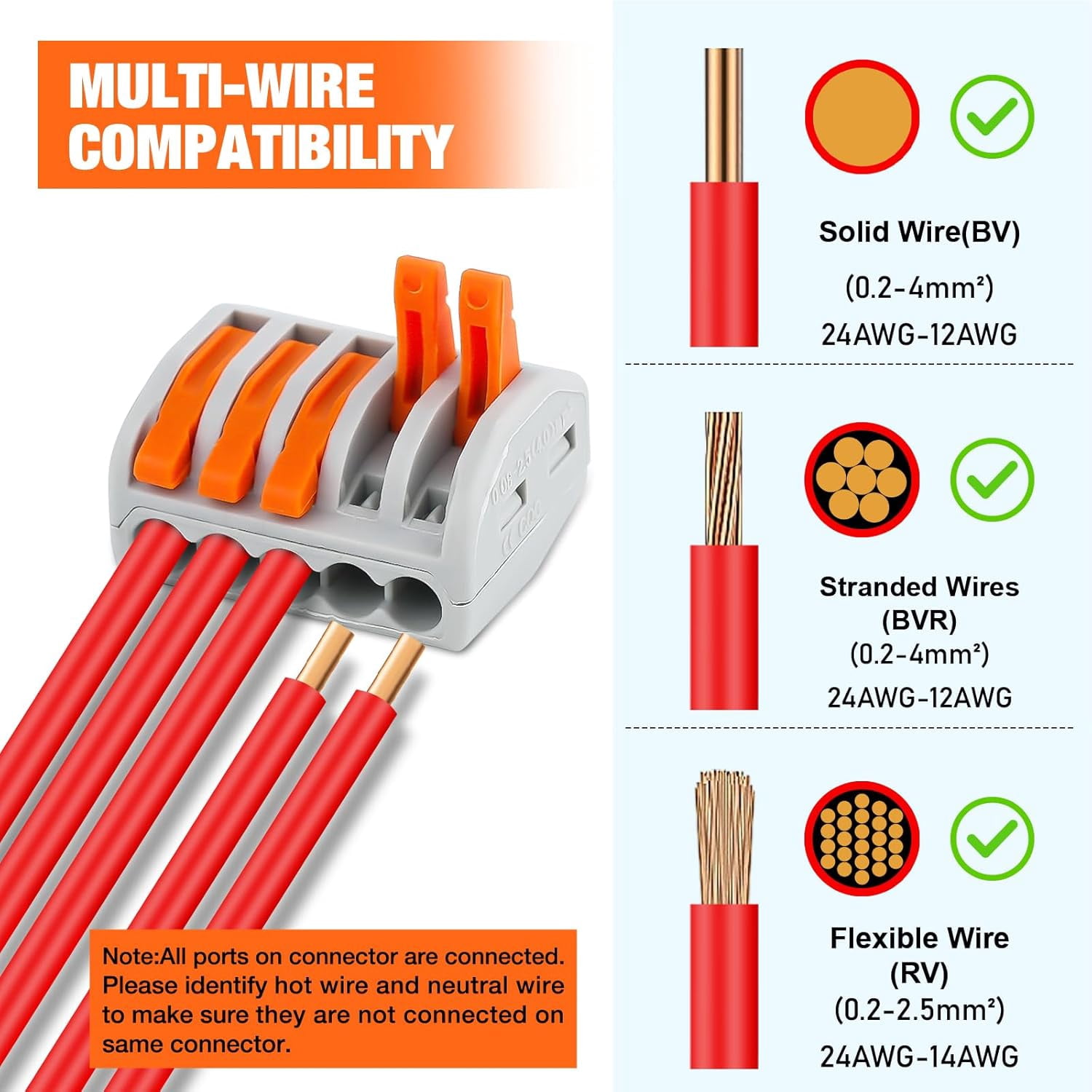

• Compatibility: Are widely applied to connect any combination of solid, stranded, and flexible copper wires, ideal for compact and complex applications. Suitable for single strand hard wire 0.08~4mm²/28-12AWG, and the multiple strand flexible copper wire 0.08~2.5mm²/28-14AWG.

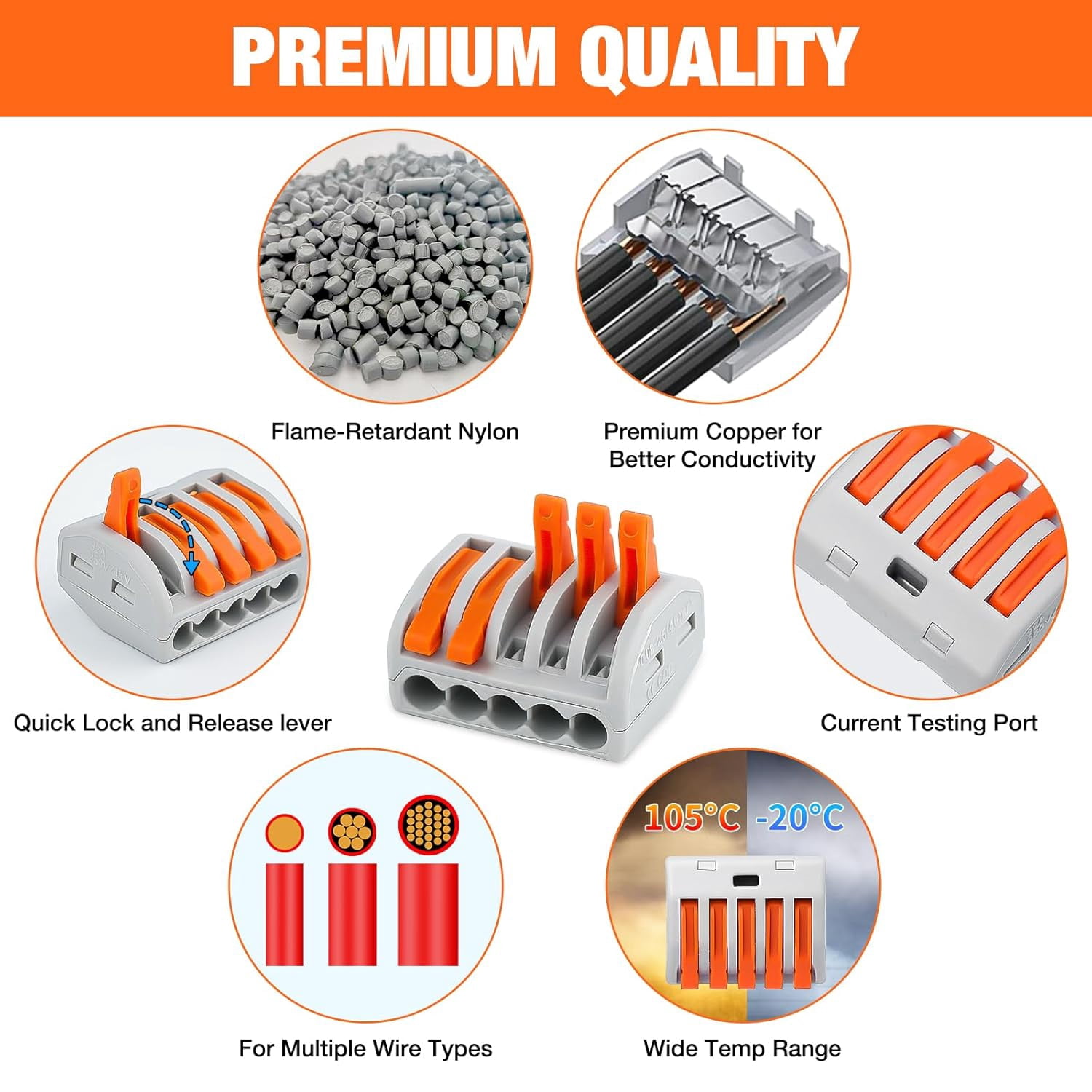

• High Quality: It is best to use modified nylon PA66 as the flame retardant insulation material, which has long service life, non-corrosion, anti-aging, pressure resistance and high temperature resistance. Lever wire connectors can be used at an ambient temperature of 105°C and have better conductive properties.
• Safe Design: The lever wire connector inline joint can manage different wires separately to avoid short circuits and fires caused by the aging of the wire staggered strips.

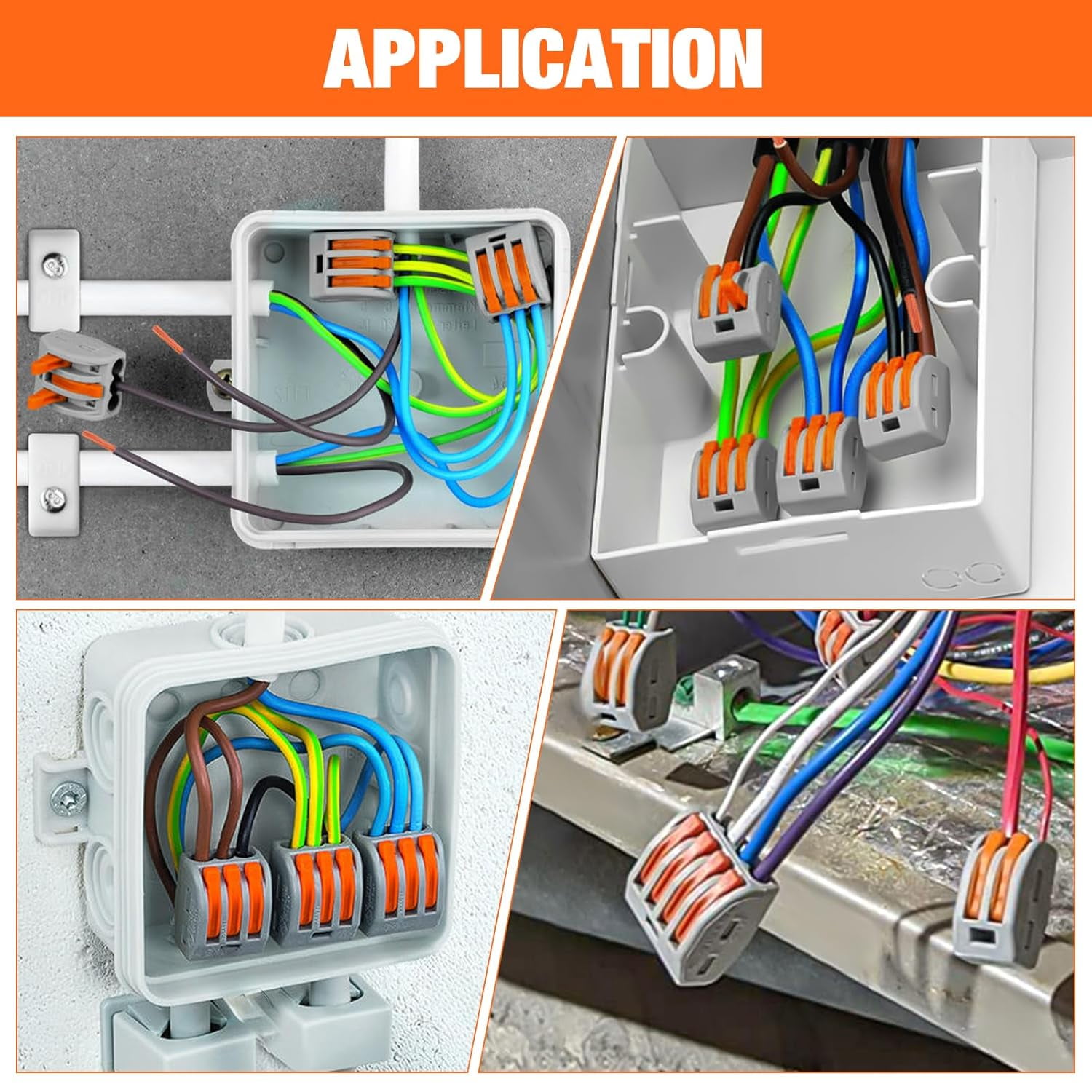

• Widely Application: Widely used in building wiring, lighting, automatic doors, sockets, switches, cars, loudspeakers, electrical boxes, fan controls and all small appliances.

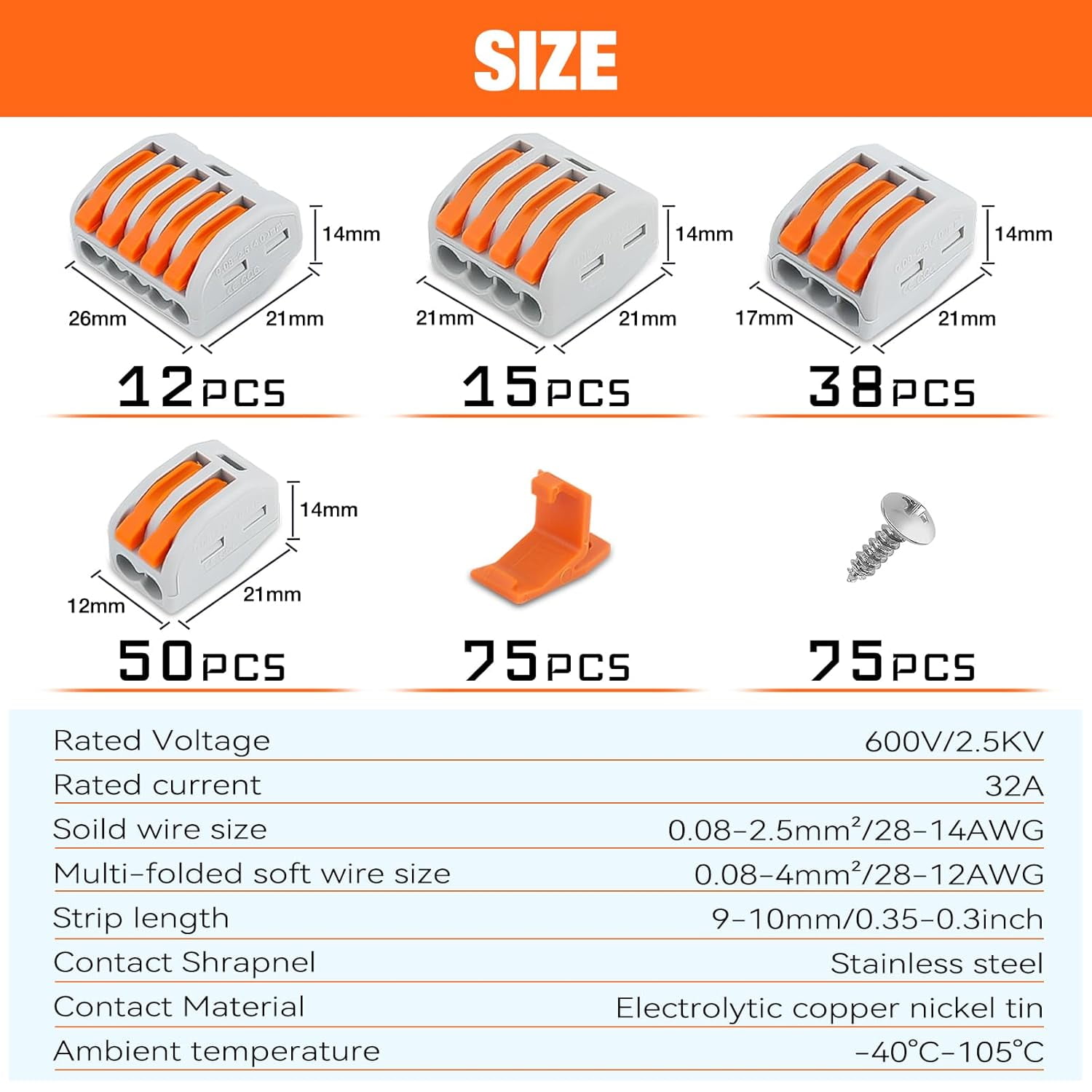

• Package includes:115PCS Lever Wire Connectors Nuts Assortment Kit.2 Conductor: 50PCS; 3 Conductor: 38PCS; 4 Conductor: 15PCS; 5 Conductor: 12PCS; Mounting Clips: 75PCS; Screws: 75PCS. 2 Year Warranty by Nilight.
